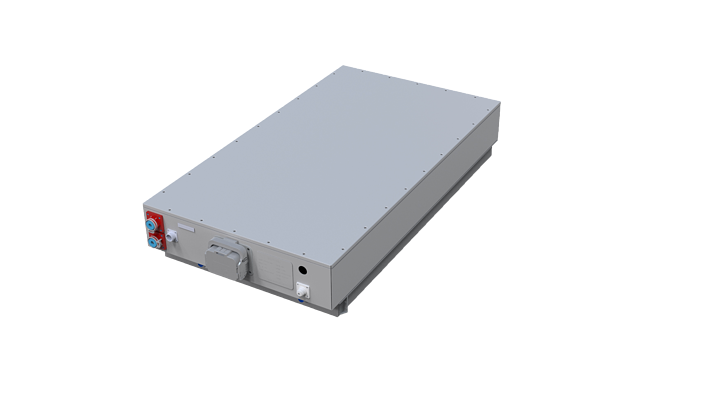

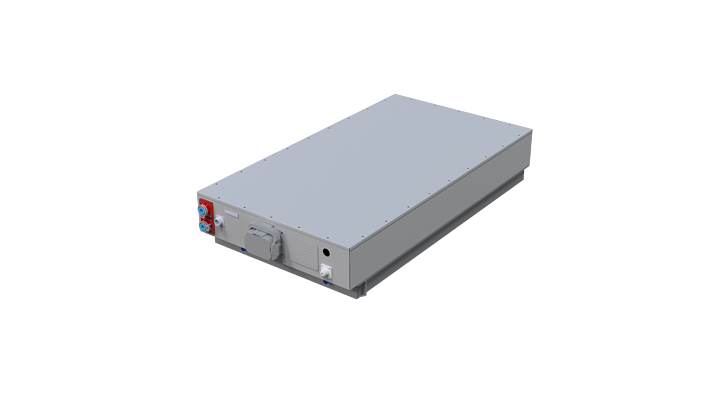

22.4V600Ah电池箱规格书
项目(Item) | 参数(Parameter) |
1 额定容量 Rated capacity | 600Ah(2P7S) |
2 额定电压 Rated Voltage | 22.4V |
3 持续充电电流 Continuous charging current | 180A |
3 持续放电电流 Continuous discharge current | 180A |
4 工作电压范围 Operating voltage Range | 18.2-25.2V |
5 工作温度范围 Operating Temperature range | 充电温度: 0~55℃ Charging temperature 放电温度:-10~55℃ Discharge temperature |
6 储存温度 Storage temperature | -20~60℃ |
7 电池包重量 Pack weight | 约118kg |
9电量 Power | 13.44kwh |
10 尺寸 Dimensions | 892*496*167 |
电池箱三视图
