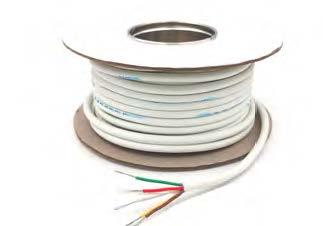

Appliction: Marine Trailer Wiring.
Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125.
Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808.
Core Colours:
3 Core: White, Yellow, Brown.
5 Core: White, Yellow, Brown, Red, Green.
7 Core: White, Yellow, Brown, Red, Green, Blue, Black.
Sheath: RoHS Compliant V90 P.V.C. to AS/NZS 3808.
Sheath Colour: White.
Cables printing with the specification and brand name on the insulation is available.
Packs: 7m 10m 30m 50m 100m other length by request.
Packing method: Blister, Paper hanger; Plastic reel; Paper reel; wooden drum according to different length.
| Part No | No.of Cores | Nominal Area （mm²） | Conductor NO/DIA (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Amps | Electrical Resistance at 20℃ （ohm/km） | Normal O.D. （mm) | Mass (kg/100m) |
|---|---|---|---|---|---|---|---|---|---|
| 5834M-TC | 3 | 3×1.84 | 23/0.32 | 0.4 | 0.6 | 15 (28*) | 10.2 | 7.2 | 8.4 |
| 5852M-TC | 5 | 5×0.5 | 16/0.2 | 0.4 | 0.5 | 5 (7*) | 40.1 | 5.4 | 4.9 |
| 5853M-TC | 5 | 5×1.0 | 32/0.2 | 0.4 | 0.6 | 10 (20*) | 20 | 7.2 | 8.2 |
| 5872M-TC | 7 | 7×0.5 | 16/0.2 | 0.4 | 0.6 | 5 (7*) | 40.1 | 5.9 | 5.4 |
| 5873M-TC | 7 | 7×1.0 | 32/0.2 | 0.4 | 0.6 | 10 (20*) | 20 | 7.8 | 10.9 |
| 5874M-TC | 7 | 7×1.84 | 23/0.32 | 0.4 | 0.6 | 15 (28*) | 10.3 | 9 | 17.7 |
