76.8V150Ah(或175Ah)电池箱规格书
项目(Item) | 参数(Parameter) |
1 额定容量 Rated capacity | 150/175Ah(1P24S) |
2 额定电压 Rated Voltage | 76.8V |
3 持续充电电流 Continuous charging current | 0.5C |
3 持续放电电流 Continuous discharge current | 1C |
4 工作电压范围 Operating voltage Range | 62.4-86.4V |
5 工作温度范围 Operating Temperature range | 充电温度: 0~55℃ Charging temperature 放电温度:-10~55℃ Discharge temperature |
6 储存温度 Storage temperature | -20~60℃ |
7 电池包重量 Pack weight | 约115kg(或约117kg) |
9电量 Power | 11.52kwh(或13.44kwh) |
10 尺寸 Dimensions | 710*494*260 |

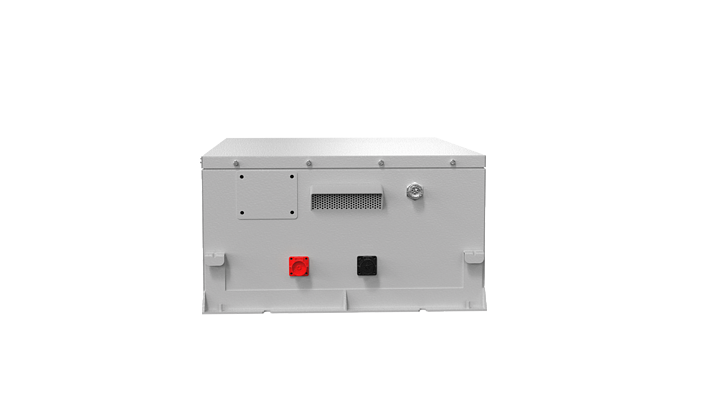

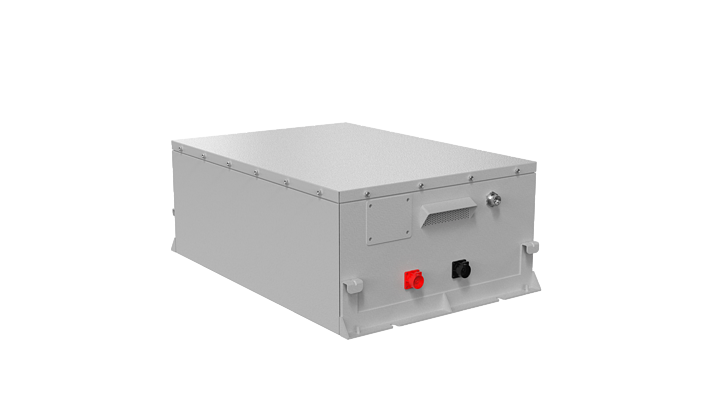

电池箱三视图
